PVC Coated Barbed Wire

PVC Coated Barbed Wire stands out as a high-performance security solution, leveraging advanced PVC coating technology to address the limitations of traditional barbed wire. Its core advantage lies in enhanced corrosion resistance—the special inert properties of PVC ensure the coating remains intact, with no color fading or peeling, even after long-term exposure to harsh elements like sunlight, heavy rain, humidity, or salt spray. Additionally, it offers flexible color customization to align with diverse project aesthetics, making it a perfect blend of functionality and visual appeal.

1. Surface Treatment & Weaving Characteristics

1.1 Multi-Layered Protection: Surface Treatment

Our PVC Coated Barbed Wire adopts a dual-defense system for maximum durability:

• Base Layer: Galvanization: The underlying low-carbon steel wire is first treated with either electric galvanizing (for basic corrosion resistance) or hot-dipped galvanizing (for stronger protection against moisture and chemicals). This forms a primary barrier against rust.

• Top Layer: PVC Coating: A uniform, high-adhesion PVC layer is applied over the galvanized base. The coating is non-toxic, eco-friendly, and resistant to aging, ensuring long-term performance in both indoor and outdoor environments.

1.2 Precision Craftsmanship: Weaving & Structure

• Weaving Process: Manufactured via twisting and weaving technology—steel strands are tightly twisted together, with sharp barbs evenly attached along the length. This process creates a rigid, stable structure that resists deformation under external pressure (e.g., animal impacts, strong winds).

• Key Characteristics:

• Hardness: The twisted structure and PVC coating enhance the wire’s rigidity, making it difficult to bend or break.

• Aesthetics: The smooth, uniform PVC coating and customizable colors give the product a neat, professional look—avoiding the rough, rust-prone appearance of uncoated wire.

2. Detailed Specifications

Our PVC Coated Barbed Wire offers a wide range of specifications to suit different protection needs. Below is the detailed parameter table (based on Birmingham Wire Gauge, B.W.G.—a standard for wire thickness), including strand/barb gauge, approximate length per kilogram, and barb spacing:

Specification Notes:

Barb Spacing: Closer spacing (3"-4") provides higher security (e.g., industrial perimeters), while wider spacing (5"-6") balances protection and material efficiency (e.g., agricultural fencing).

Wire Gauge: Thicker gauges (e.g., 12x12) offer greater strength for heavy-duty use, while thinner gauges (e.g., 15x15) are ideal for light to medium protection (e.g., garden boundaries).

3. Wide-Ranging Application Scenarios

Thanks to its corrosion resistance, durability, and aesthetic flexibility, our PVC Coated Barbed Wire is widely used across industries:

Agriculture & Animal Husbandry: Encloses livestock farms (cattle, sheep, poultry) and crop fields. Resists corrosion from manure and rain, preventing animal escapes and wild animal intrusions.

Industrial & Logistics: Secures factory perimeters, warehouse yards, and port areas. The rigid structure deters theft, while the PVC coating withstands industrial chemicals and salt spray (for coastal ports).

Residential & Commercial: Enhances security for residential communities, villas, and parking lots. Custom colors (e.g., dark green, gray) blend with architectural styles, avoiding the "industrial" look of traditional barbed wire.

Infrastructure: Installs along highways, railways, and power stations. Resists extreme weather (high temperatures, heavy snow) and maintains performance for years.

Garden & Landscape: Divides garden zones or protects ornamental plants. Color-matched PVC coating complements greenery, combining security with beauty.

4. Reliable Packaging for Safe Transit

To ensure the product arrives in perfect condition, we use industry-proven packaging solutions:

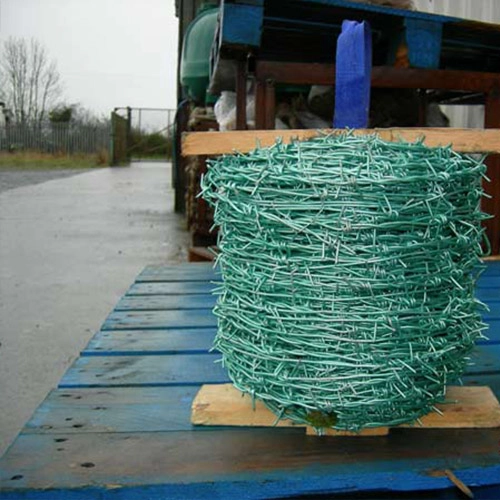

Coil Packaging: Each coil is available in standard weights of 25kg or 50kg (custom weights upon request). The inner layer is lined with soft PVC strips to prevent scratches on the coating; the outer layer is wrapped with thick, moisture-proof hessian cloth or reinforced PVC film to shield against rain, dust, and impact during transportation.

Labeling: Every package is clearly labeled with key information, including: strand/barb gauge, barb spacing, net weight, PVC color, batch number, and manufacturer contact details. This simplifies inventory management and quick inspection for customers.

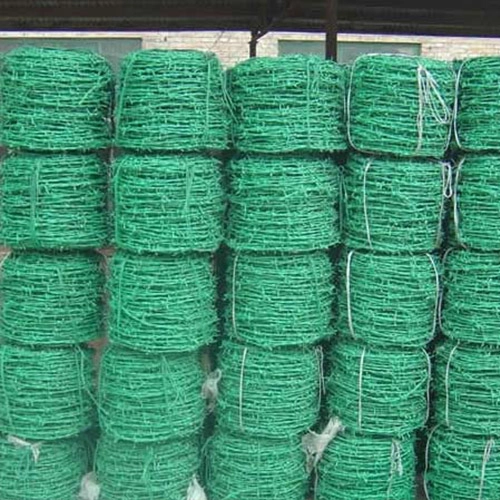

Bulk Shipping: For large orders, coils are securely placed on wooden pallets and fastened with steel straps to prevent shifting during sea or land transport—ideal for international deliveries.

5. Why Choose Our PVC Coated Barbed Wire?

5.1 Strict Quality Control

We prioritize quality at every stage:

Raw Material Selection: We use high-grade low-carbon steel wire (with tensile strength ≥ 450MPa) and eco-friendly PVC resin (compliant with RoHS standards) to ensure durability and safety.

Production Monitoring: Advanced automated equipment controls PVC coating thickness (uniform 0.4-0.6mm) and barb spacing accuracy. Each batch undergoes sampling tests, including salt spray testing (≥ 500 hours for corrosion resistance) and UV aging testing (≥ 1000 hours for colorfastness).

Certification: Our products meet international standards such as ISO 9001 (quality management) and ASTM A641 (steel wire specifications), ensuring reliability for global customers.

5.2 Flexible Customization

We understand every project is unique:

Color Customization: Beyond standard blue-green and yellow, we offer custom colors (e.g., black, white, forest green) to match your project’s aesthetic or brand identity.

Specification Customization: We tailor strand/barb gauges, barb spacing, and coil lengths to your specific needs—whether for a small garden fence or a large industrial perimeter.

5.3 Competitive Pricing

As a direct manufacturer with our own production facility and automated lines, we eliminate middlemen and reduce operational costs. This allows us to offer premium PVC Coated Barbed Wire at competitive prices—without compromising on quality. We also provide bulk order discounts to help you save on large-scale projects.

5.4 Professional After-Sales Service

Our support doesn’t end with delivery:

Pre-Sales Consultation: Our team of experts (with over 8 years of industry experience) provides personalized recommendations, helping you select the right specifications based on your application scenario and budget.

On-Site Support: For complex installations (e.g., highway guardrails), we send technicians to the site to offer free installation guidance—ensuring optimal performance and safety.

Warranty Guarantee: We offer a 3-5 year warranty (depending on the application environment). If the coating peels or the wire rusts due to non-human factors within the warranty period, we provide free replacement or repair.

Whether you need a corrosion-resistant solution for coastal areas, an aesthetic fence for residential communities, or a durable barrier for industrial sites, our PVC Coated Barbed Wire delivers unmatched performance. Contact us today to get a customized quote and start your project with confidence!
