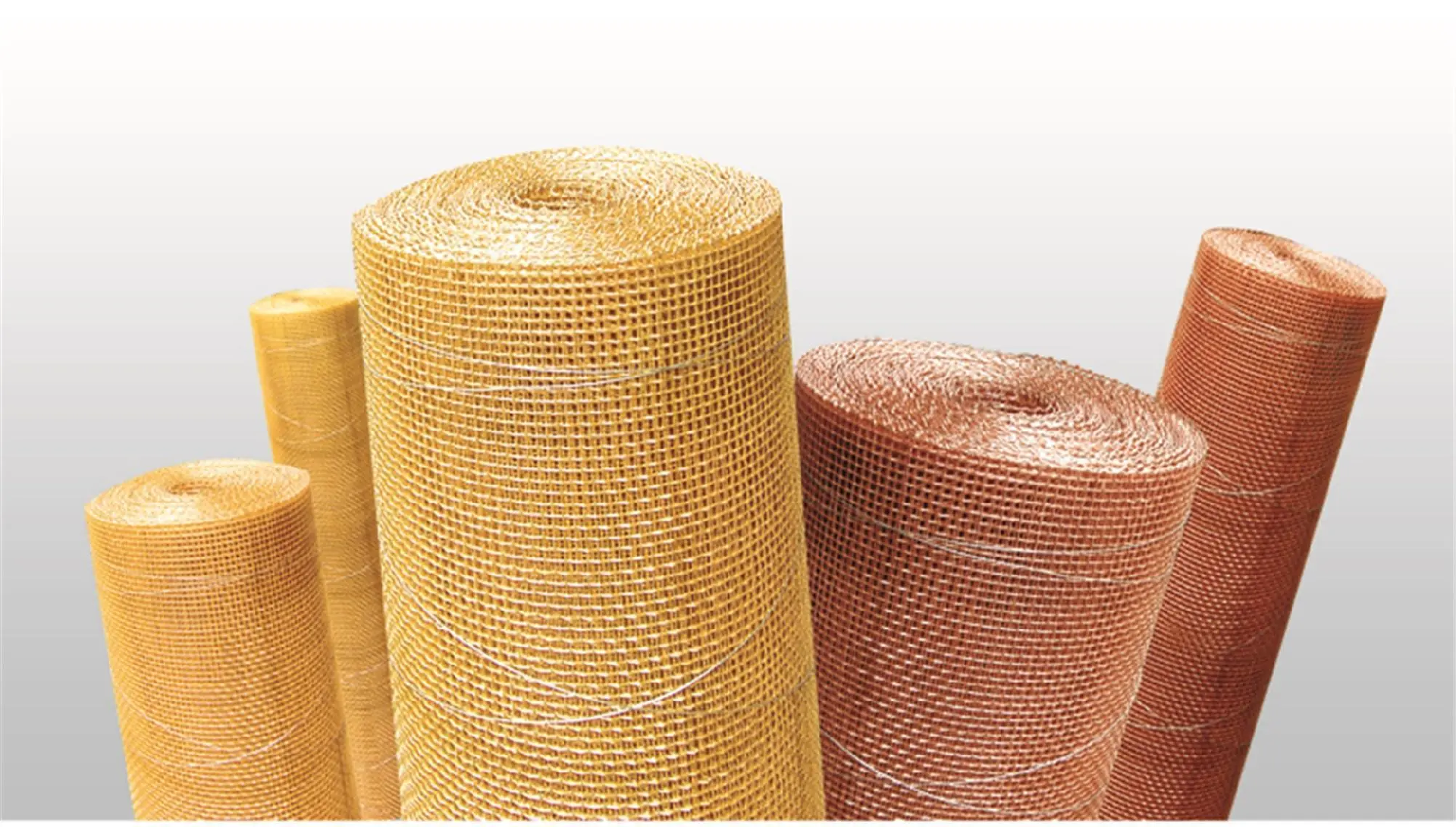

Phosphor Bronze Woven Wire Mesh

Description: Phosphor Bronze woven wire mesh has a brownish red color, produced from Phosphor Bronze wire. It is an alloy that is comprised of copper, stannum and zinc.

Model No.:JH47660WC
Supply Nature:Factory Direct

Product consultation CONTACT US

PRODUCTS

NEWS

Product Details

Phosphor Bronze woven wire mesh has a brownish red color, produced from Phosphor Bronze wire. It is an alloy that is comprised of copper, stannum and zinc. The chemical composition for our Phosphor Bronze woven wire mesh is approximately 92.5% copper,4.15% Sn and 3.2% Zinc. Compared to Brass woven wire mesh, Phosphor Bronze woven wire mesh is superior in resistance to atmospheric corrosion. The common woven style is plain weave.

Specification

Mesh/linear inch	Wire diameter		Aperture
Mesh/linear inch	inch	mm	inch	mm
20×20	0.012	0.315	0.0376	0.955
20×20	0.012	0.315	0.033	0.84
24×24	0.012	0.315	0.0293	0.743
26×26	0.0116	0.295	0.0269	0.682
28×28	0.0116	0.295	0.024	0.612
30×30	0.011	0.247	0.0226	0.573
32×32	0.01	0.254	0.0213	0.54
34×34	0.0092	0.234	0.0202	0.513
36×36	0.0092	0.234	0.0186	0.472
38×38	0.0084	0.213	0.0179	0.455
40×40	0.0076	0.193	0.0174	0.442
50×50	0.0068	0.173	0.0132	0.335
60×60	0.0068	0.173	0.0098	0.25
80×80	0.0048	0.122	0.0077	0.196
90×90	0.0044	0.112	0.0067	0.17
100×100	0.00393	0.1	0.006	0.154
120×120	0.0032	0.081	0.0052	0.131
137x137	0.0024	0.061	0.0049	0.125
150×150	0.0024	0.061	0.0043	0.108
160×160	0.0024	0.061	0.0039	0.098
180×180	0.002	0.051	0.0035	0.09
183x183	0.002	0.051	0.0035	0.089
200×200	0.002	0.051	0.003	0.076
Special mesh with different wire thickness could be customized

Applications

Filtration, architectural and decorative applications

Feature

High abrasion resistance, Corrosion Protection, Malleability, Durability and Ductility.

Why Choose Our Product?

Superior Quality: Our phosphor bronze woven wire meshes are manufactured using state-of-the-art technology and rigorously tested for durability and performance.

Customization Service: We provide personalized sizing and design options.

Competitive Pricing: Enjoy high-end quality at affordable rates. Click here to inquire about prices and place orders.

Global Standards: Designed to meet international demand, our products are trusted by customers in developed markets.
