Stainless Steel Wire Cloth

Description: Stainless steel wire cloth is a high-performance industrial material meticulously woven from premium-grade stainless steel warp and weft wires. FeaturesCorrosion Resistance: Excellent resistance to acids, alkalis, and harsh environments, ensuring longevity.

Model No.:JH47666SC
Supply Nature:

Product consultation CONTACT US

PRODUCTS

NEWS

Product Details

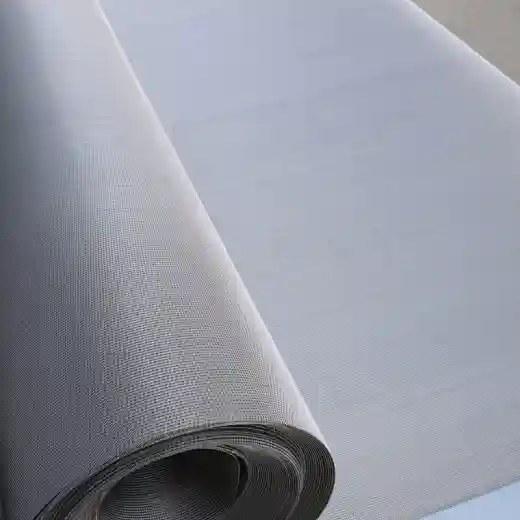

Stainless steel wire cloth is a high-performance industrial material meticulously woven from premium-grade stainless steel warp and weft wires.

Features

Corrosion Resistance: Excellent resistance to acids, alkalis, and harsh environments, ensuring longevity.

Heat Resistance: Suitable for high-temperature applications without compromising structural integrity.

Abrasion Resistance: Withstands wear and tear, ideal for heavy-duty use.

Versatility: Available in multiple weave patterns and materials to suit diverse needs.

Specifications

Materials:

AISI 304, 304A, 304L, 316, 316L.

Weave Types:

Plain Weave, Twill Weave, Plain Dutch Weave, Reverse Plain Dutch Weave, Twill Dutch Weave.


Mesh Sizes: Customizable from fine to coarse configurations.

Wire Diameter: Ranging from ultra-fine to thick diameters based on application requirements.

Width and Length: Standard rolls or custom-cut sizes to meet specific project needs.

Woven wire mesh
Mesh/linear inch	Wire diameter		Aperture		Open Surface
Mesh/linear inch	inch	mm	inch	mm	%
1×1	0.157	4	0.84	21.4	71
2×2	0.079	2	0.421	10.7	71
2×2	0.071	1.8	0.429	10.9	74
2×2	0.063	1.6	0.437	11.1	76
3×3	0.079	2	0.25	6.4	58
3×3	0.071	1.8	0.263	6.67	62
3×3	0.063	1.6	0.27	6.87	66
3×3	0.055	1.4	0.278	7.07	70
4×4	0.063	1.6	0.187	4.75	56
4×4	0.047	1.19	0.203	5.16	65.9
4×4	0.039	1	0.211	5.35	71
5×5	0.055	1.4	0.14	3.68	52
5×5	0.047	1.2	0.153	3.88	57
5×5	0.039	1	0.161	4.08	65
6×6	0.047	1.2	0.12	3.03	51
6×6	0.039	1	0.127	3.23	58
6×6	0.0354	0.9	0.131	3.33	62
6×6	0.0315	0.8	0.135	3.03	66
6×6	0.028	0.71	0.139	3.52	69
8×8	0.43	1.1	0.08	2.08	42
8×8	0.43	1	0.08	2.18	47
8×8	0.0354	0.9	0.08	2.28	51
8×8	0.0315	0.8	0.08	2.38	56
8×8	0.028	0.71	0.08	2.465	60
8×8	0.0248	0.63	0.08	2.08	64
8×8	0.022	0.56	0.08	2.08	68
10×10	0.039	1	0.06	1.54	36
10×10	0.0354	0.9	0.065	1.64	42
10×10	0.0315	0.8	0.068	1.74	47
10×10	0.028	0.71	0.072	1.83	52
10×10	0.0248	0.63	0.075	1.91	57
10×10	0.022	0.56	0.078	1.98	61
10×10	0.0197	0.5	0.08	2.04	65
12×12	0.028	0.71	0.055	1.407	44
12×12	0.0248	0.63	0.0585	1.487	49
12×12	0.022	0.56	0.061	1.557	54
12×12	0.0197	0.5	0.0637	1.617	58
12×12	0.0177	0.45	0.0656	1.667	62
14×14	0.023	0.56	0.049	1.254	48
14×14	0.0197	0.5	0.052	1.314	52
14×14	0.0177	0.45	0.054	1.364	57
14×14	0.0157	0.4	0.0557	1.414	61
14×14	0.0142	0.36	0.051	1.454	64
16×16	0.0142	0.36	0.0483	1.228	60
16×16	0.0118	0.3	0.051	1.295	65
18×18	0.0118	0.3	0.0437	1.11	62
18×18	0.01	0.24	0.046	1.17	69
20×20	0.02	0.508	0.03	0.76	36
20×20	0.016	0.406	0.034	0.86	46.2
24×24	0.014	0.356	0.0277	0.7	44.2
30×30	0.013	0.33	0.0203	0.52	37.1
30×30	0.012	0.305	0.0213	0.54	40.8
30×30	0.009	0.229	0.0243	0.62	53.1
35×35	0.011	0.279	0.0176	0.45	37.9
40×40	0.01	0.254	0.015	0.38	36
50×50	0.009	0.229	0.011	0.28	30.3
50×50	0.008	0.203	0.012	0.31	36
60×60	0.0075	0.191	0.0092	0.23	30.5
60×60	0.007	0.178	0.0097	0.25	33.9
70×70	0.0065	0.165	0.0078	0.2	29.8
80×80	0.0065	0.165	0.006	0.15	23
80×80	0.0055	0.14	0.007	0.18	31.4
90×90	0.005	0.127	0.0061	0.16	30.1
100×100	0.0043	0.11	0.0057	0.144	31
100×100	0.00393	0.1	0.006	0.154	37
100×100	0.00354	0.09	0.0065	0.164	42
100×100	0.00315	0.08	0.0069	0.174	47
110×110	0.004	0.1016	0.0051	0.1295	30.7
120×120	0.0037	0.094	0.0046	0.1168	30.7
150×150	0.0026	0.006	0.0041	0.1041	37.4
160×160	0.0025	0.0635	0.0038	0.0965	36.4
180×180	0.0023	0.0584	0.0033	0.0838	34.7
200×200	0.0021	0.0533	0.0029	0.0737	33.6
250×250	0.0016	0.0406	0.0024	0.061	36
270×270	0.0016	0.0406	0.0021	0.0533	32.2
300×300	0.0015	0.0381	0.0018	0.0457	29.7
325×325	0.0014	0.0356	0.0017	0.0432	30
400×400	0.001	0.0254	0.0015	0.037	36
500×500	0.001	0.0254	0.001	0.0254	25
635×635	0.0008	0.0203	0.0008	0.0203	25
1mm=1000microns. Aperture(mm)=25.4/M-D ( M= mesh count per inch, d=Wire diameter in mm . Open area %=｛a²/(a+d)²｝x100 (a=aperture in mm, d=wire diameter). Special mesh with different wire thickness could be customized


Plain Dutch weave mesh
*Mesh*	*Wire Diameter*				*Weave*
	*Warp wire*		*Weft Wire*
	in	mm	in	mm
12x64	0.023	0.58	0.0165	0.42	P.D.W
14x88	0.019	0.48	0.012	0.3	P.D.W
14x110	0.016	0.4	0.011	0.28	P.D.W
24x110	0.014	0.355	0.01	0.25	P.D.W
30X150	0.009	0.23	0.007	0.18	P.D.W
40X200	0.007	0.18	0.0055	0.14	P.D.W
50X250	0.0055	0.14	0.0045	0.11	P.D.W



Twill Dutch weave mesh
*Mesh*	*Wire Diameter*				*Weave*
	*Warp wire*		*Weft wire*
	in	mm	in	mm
16X200	0.014	0.355	0.01	0.25	T.D.W
20X200	0.0135	0.34	0.011	0.28	T.D.W
20X300	0.01	0.25	0.007	0.18	T.D.W
30X250	0.01	0.25	0.008	0.2	T.D.W
20X350	0.01	0.25	0.006	0.15	T.D.W
20X250	0.01	0.25	0.0082	0.21	T.D.W
50X600	0.007	0.18	0.0035	0.09	T.D.W
28X400	0.007	0.18	0.005	0.13	T.D.W
28X500	0.007	0.18	0.0045	0.11	T.D.W
50X700	0.0055	0.14	0.003	0.076	T.D.W
80X700	0.004	0.1	0.003	0.076	T.D.W
100X1000	0.004	0.1	0.002	0.051	T.D.W
165X800	0.0028	0.071	0.002	0.05	T.D.W
165X1400	0.0028	0.071	0.0016	0.04	T.D.W
200X1400	0.0028	0.071	0.0016	0.04	T.D.W
325X2300	0.0014	0.035	0.001	0.025	T.D.W


Reverse Plain Dutch weave mesh
	Wire diameter(um)		Micron Retention(um)		Prosity	Weight
Mesh	Wire diameter(um)		Micron Retention(um)		Theor	(kg/m2)
	Warp	Weft	Nominal	Absolute	(%)
84×14	-	-	-	450-530	62	3.5
260×40	-	-	125	112-125	54	2.25
170×40	-	-	90	106-118	54	2.1
175×37	-	-	85	100-106	54	2.1
130×30-35	200	380	80	95-105	57	2.7-3.10
175×40-50	150	300	60	65-72	55	2.1-2.40
280×60-70	90	200	40	54-60	56	1.34-1.55
600×100-105	42	140	25	34-38	57	.75-.80
630×125-130	42	125	17	22-26	53	.75-.85
720×140-150	35	110	15	16-20	52	.65-.70

Applications

Filtration and Screening:

Used in chemical, pharmaceutical, and food industries for precise separation and filtration.

Architectural and Decorative Use:

Employed in façades, balustrades, and interior designs for aesthetic and functional purposes.

Industrial Processing:

Ideal for sieving, sorting, and shielding in mining, agriculture, and manufacturing.

Heat Resistance and Safety:

Applied in ventilation systems, heat shields, and fireproofing solutions.

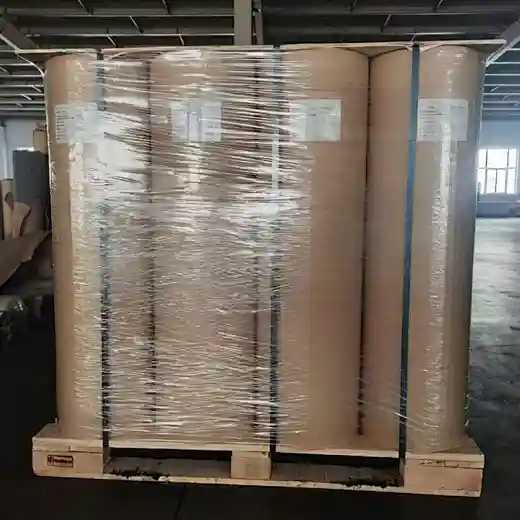

Packaging

Standard Packaging:

Rolls protected with moisture-resistant materials (e.g., plastic wraps or kraft paper) to prevent damage.

Wooden crates or pallets for large orders to ensure secure transportation.

Customized Packaging:

Tailored packaging options, including labeled bundles and specialized protection for fragile applications.

Stainless Steel Wire Cloth4.png

Why Choose Jinhai Zhongda?

Uncompromising Quality:

We source raw materials from renowned mills and conduct rigorous tests on chemical composition and tensile strength to ensure compliance with international standards.

Advanced Manufacturing:

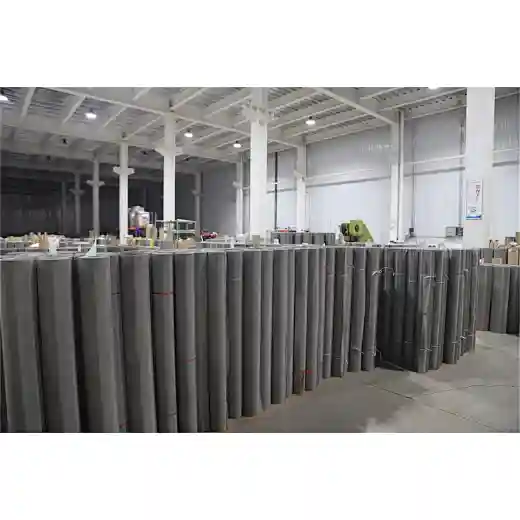

With 150 sets of weaving machines, we offer efficient production and rapid service for both standard and custom orders.

Comprehensive Quality Control:

Our skilled workers and QC team inspect the mesh meter by meter to guarantee defect-free products.

Customization Expertise:

We provide tailored solutions in weave patterns, materials, sizes, and packaging to meet unique customer requirements.

Global Reliability:

We prioritize long-term partnerships by delivering consistent quality, competitive pricing, and timely logistics support.

Stainless steel wire cloth is an indispensable material for industries requiring precision, durability, and resilience. Our products are engineered to excel in the most challenging environments, offering a perfect blend of functionality and reliability. Partner with us for unparalleled quality and service!

For inquiries or custom orders, contact us today!
