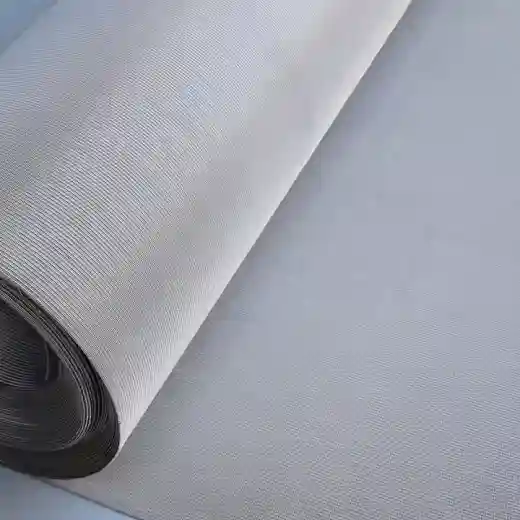

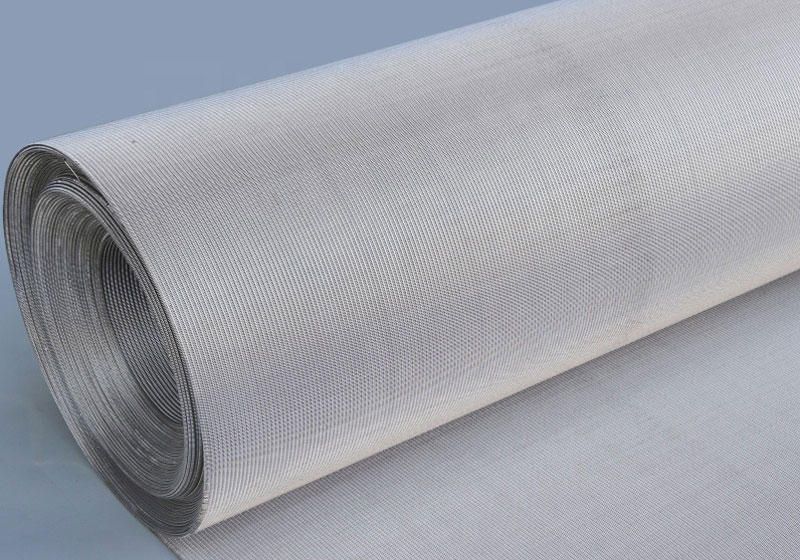

Stainless Steel Woven Wire Mesh

Many different grades of stainless steel wire mesh are used in wire cloth or woven mesh, such as stainless steel type 302, 304, 304L, 316, 316L, 321 and 430 etc. Among these, T304 is the most common one, but others are also used in specific applications to take advantage of each unique properties. It’s selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Therefore stainless steel woven wire mesh is extensively used in mining exploitation, entertainment facilities, chemical industry, food industry, agriculture, construction, breeding, pharmaceutical industry and other public places.

Benefits

* Flat surface and firm structure

* Good integrity

* Accurate pore size

* Wide range of aperture sizes

* Can be resistant to many chemicals

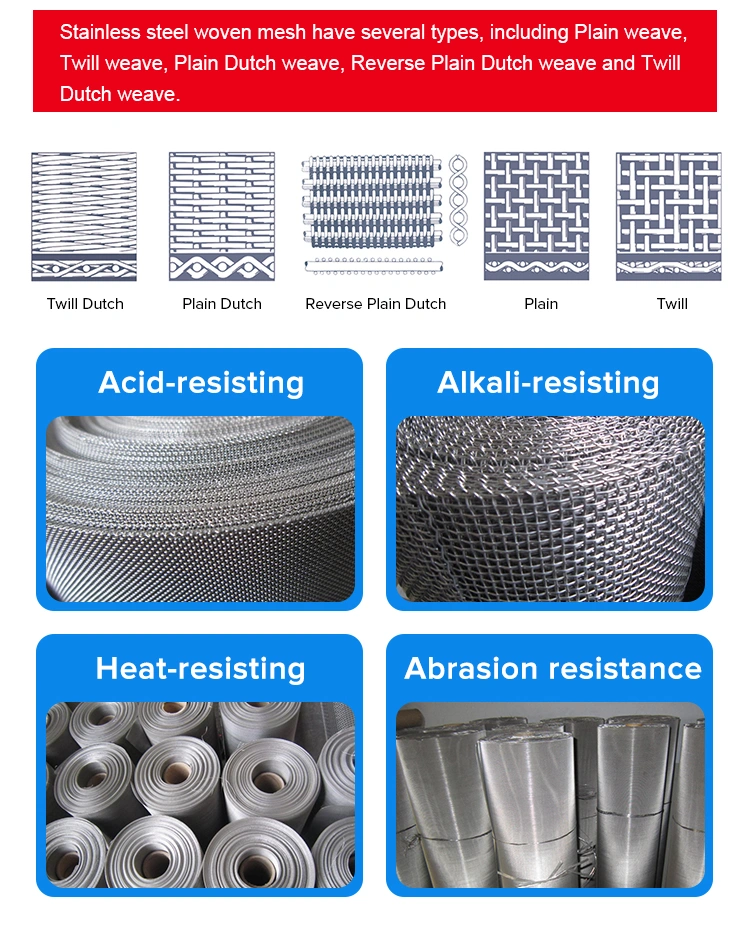

Weaving methods of stainless steel wire mesh

* Plain Weave

The plain weave is the most commonly used and simplest stainless steel woven mesh weave. Each warp wire (wire running-parallel to length of cloth) passes alternately over and under the wires running traversely through the cloth at 90 degree angles. Stainless steel plain weaving mesh offers high filtering efficiency, low pressure loss, constant mesh opening, good dimensional stability, high open surface area and good fireproof property.

* Twilled Weave

Each warp wire and weft wire passes over and under the two nearby wires successively in both the warp and weft directions. This over and under movement is shifted one wire with each pass of the shuttle. The pattern is staggered on successive warp wires, giving the appearance of parallel diagonal lines. This weave allows the use of proportionately heavier wires in a particular mesh count than is possible in plain weave. Crossed twilled wire mesh are basic components in the production of filters, colanders for aliments, chemicals products, shielding, mosquito nets, etc.

* Dutch Weave

Dutch weave stainless steel woven mesh is also known as stainless steel dutch woven wire cloth and stainless steel filter cloth. It is usually made of mild steel wire and stainless steel wire. Stainless steel dutch wire mesh is extensively utilized as filter fittings for chemical industry, medicine, petroleum, telecom-communication, scientific research units,due to its stable and fine filtration capability. Meantime it’s also widely used in aerospace, petroleum, chemical industry, chemical fiber, machinery, plastic products, scientic research, conveying and other industries.

Specifications of Stainless Steel Woven Mesh

Special Stainless Steel Woven Mesh specifications can be produced by the customer’s requirements.

Why Jinhaizhongda Stands Out in Stainless Steel Mesh Manufacturing?

Choosing the right supplier for stainless steel mesh impacts your product quality, costs, and project timelines. At Jinhaizhongda, we combine legacy expertise with cutting-edge innovation to deliver unmatched value. Here’s how we outperform competitors:

✅ 1. 20+ Years of Specialized Expertise

While many suppliers generalize in wire mesh, we’ve refined our craft exclusively for over two decades.

→ Result: Deeper metallurgical knowledge, consistent quality, and reliable solutions for complex applications (e.g., filtration, architecture, chemical processing).

✅ 2. Advanced Production Line & Precision Control

Competitors often rely on semi-automated or aging equipment.

→ Our Edge: Fully automated, ISO-certified lines with laser-calibrated tension control.

→ Outcome: Tighter tolerances (±0.02mm), uniform weave integrity, and zero material fatigue – critical for aerospace, medical, and high-precision industries.

✅ 3. Material Integrity You Can Trust

Common industry pain points: inconsistent alloy grades, surface impurities.

→ Our Solution:

Raw Material: Exclusive use of certified 304/316/316L stainless steel billets (traceable mill certificates).

Quality Assurance: In-house spectrometry testing + salt spray testing (exceeding ASTM A480).

→ Guarantee: Mesh retains corrosion resistance, tensile strength, and longevity even in harsh environments.

✅ 4. Aggressive Pricing Without Compromise

Balancing cost and quality? We resolve the trade-off.

→ How? Vertical integration (wire drawing → weaving → finishing) + economies of scale.

→ Competitive Advantage: 15-20% lower than European/US brands, without sacrificing material quality or precision.

✅ 5. Customization & Technical Partnership

Generic suppliers offer limited sizes/weaves.

→ Our Capability:

Range: Mesh counts from 2 to 635, wire diameter 0.025mm–3.0mm.

Specialization: Twill weave, Dutch weave, filter meshes, welded panels.

Support: Engineering consultations for optimal mesh selection (flow rates, load capacity, corrosion resistance).
