Hot-dipped Galvanized Wire

Hot dipped galvanized wire is carbon steel with galvanized finish. Choosing wire rod is the most important step, then Descaling, Drawing, Spooling, Annealing, Acid pickling, Galvanizing, Take up and packing. Different zinc-coating types depending on the durability needed.

Features

Superior Corrosion Resistance: The hot-dipped zinc coating provides long-lasting protection against rust and environmental damage.

High Tensile Strength: Combines flexibility with durability, making it suitable for demanding tasks.

Customizable Zinc Coatings: Regular coating (40-60 g/㎡) for general use or heavy coating (220+ g/㎡) for extreme conditions.

Wide Material Options: Available in grades including Q195, Q235, SAE1006, SAE1008, and SAE1045.

Specifications

Wire Diameter Range: 0.4 mm to 4.8 mm.

Zinc Coating Options:

Regular coating: 40-60 g/㎡.

Heavy coating: 220+ g/㎡ (customizable based on requirements).

Tensile Strength: 350-550 N/mm² (adjustable per customer needs).

Elongation Rate: 20%-25%.

Special Variants: Zinc-Aluminum Alloy Wire (Galfan Wire) with 5% or 10% Al-MM coating.

Applications

Construction:

Binding rebar, securing structures, and general fastening.

Fencing and Mesh:

Manufacturing welded mesh, fencing wire, and animal enclosures.

Industrial Uses:

Weaving mesh, machinery parts, and protective barriers.

Agriculture:

Vineyard trellising, crop support, and fencing.

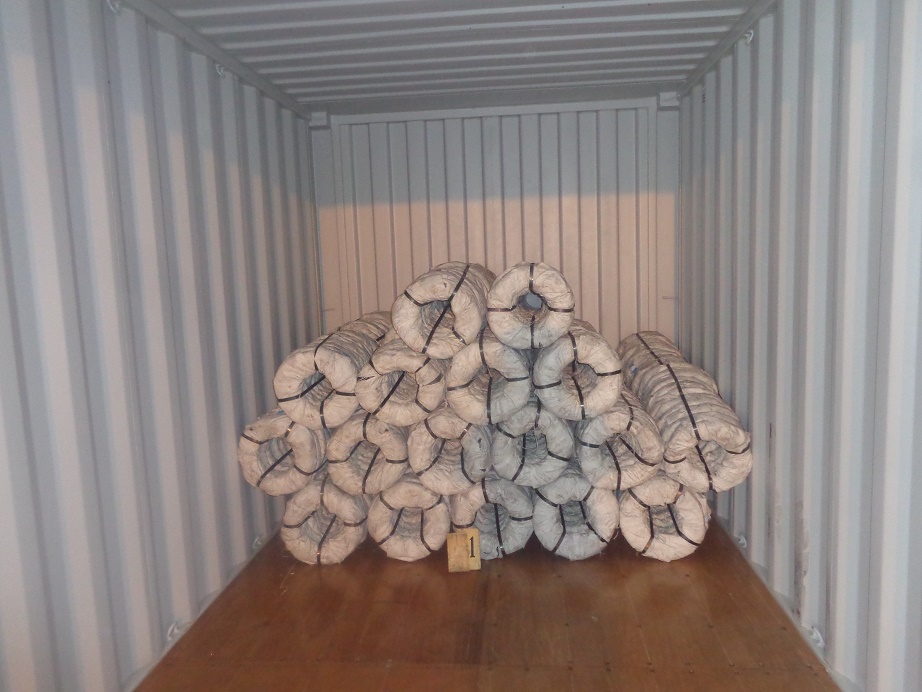

Packaging

Standard Packaging:

Coils bundled with waterproof materials (e.g., plastic wraps or woven cloth).

Wooden pallets or crates for secure storage and shipping.

Customized Options:

Tailored coil weights and packaging methods (e.g., labeled bundles or specific coil sizes).

Why Choose Jinhai Zhongda?

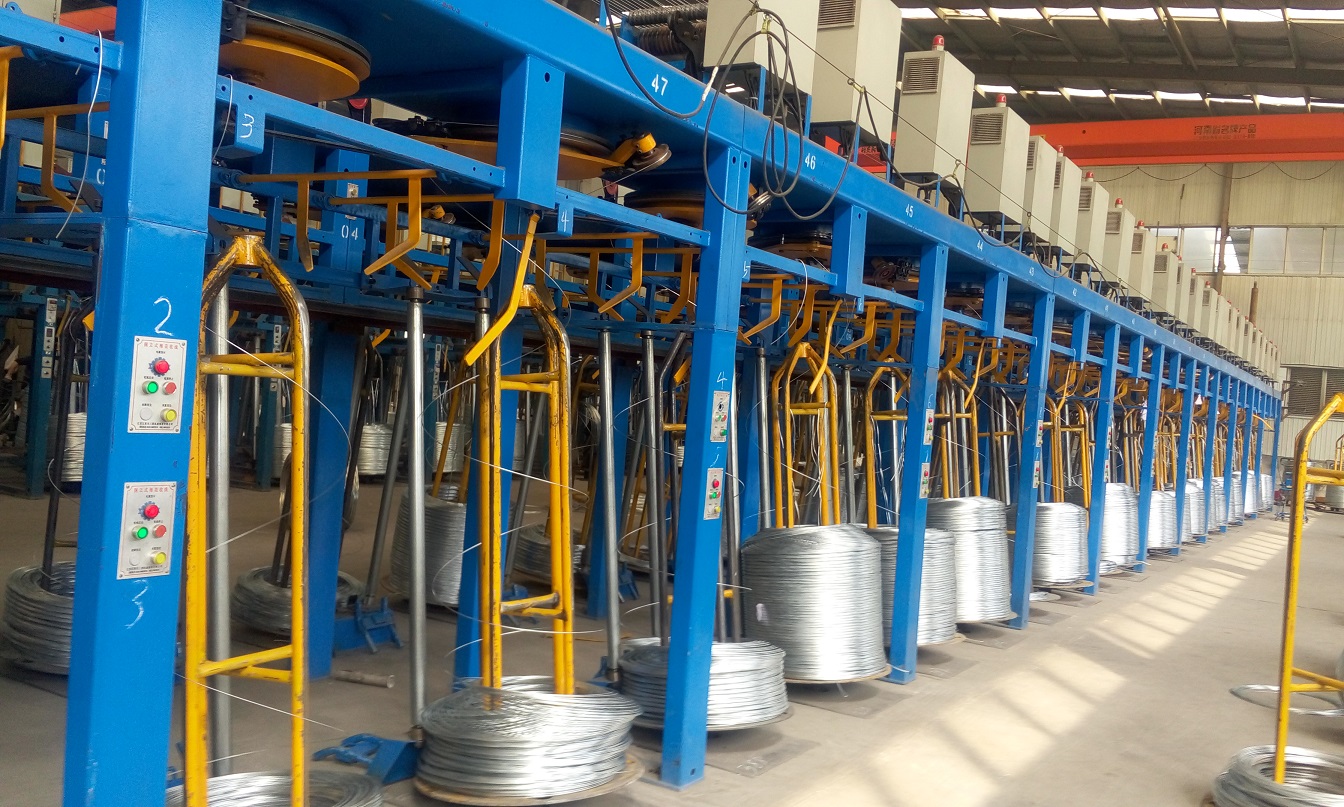

Advanced Manufacturing Facilities:

With 7 dedicated galvanizing lines, we produce wires from 0.4 mm to 4.8 mm, ensuring a monthly output of 10,000 tons to meet large-scale demands.

Rigorous Quality Control:

Each coil undergoes testing for zinc coating uniformity and tensile strength to guarantee reliability.

Comprehensive Customization:

We offer tailored zinc coatings, tensile strengths, and packaging options to match specific project needs.

Competitive Pricing:

Cost-effective solutions without compromising on quality, thanks to optimized production processes.

Global Supply Capability:

Our efficient logistics network ensures timely delivery worldwide, supporting both small and bulk orders.

For inquiries or custom orders, contact us!
