Electro Galvanized Wire Gi Wire

Electro galvanized wire is made of high quality low carbon steel wire, through the process of drawing, annealing, acid washing and galvanizing. Galvanized wires with low and high carbon content obtained from different kinds of high quality wire rod. It has a bright surface and good corrosion resistance. The product of galvanized wire have uniformly tensile strength and zinc-coating, the wire diameter ranges from 0.25mm to 4.5mm. Galvanized wire is supplied in calibrated of selected weight.

Features

Bright Surface Finish: Electroplating provides a smooth, aesthetically pleasing appearance.

Uniform Coating: Consistent zinc layer (8-25 g/㎡) ensures reliable corrosion protection.

High Tensile Strength: Available in two grades (350-550 N/mm² and 600-800 N/mm²) to suit diverse requirements.

Flexibility and Ductility: Elongation rate of 20%-25% allows easy shaping without breaking.

Specifications

Materials: Q195, Q235, SAE1006, SAE1008, SAE1045.

Wire Diameter: 0.25 mm to 4.5 mm.

Zinc Coating: 8-25 g/㎡ (customizable upon request).

Tensile Strength:

Standard: 350-550 N/mm².

High-Strength: 600-800 N/mm².

Elongation Rate: 20%-25%.

Packaging

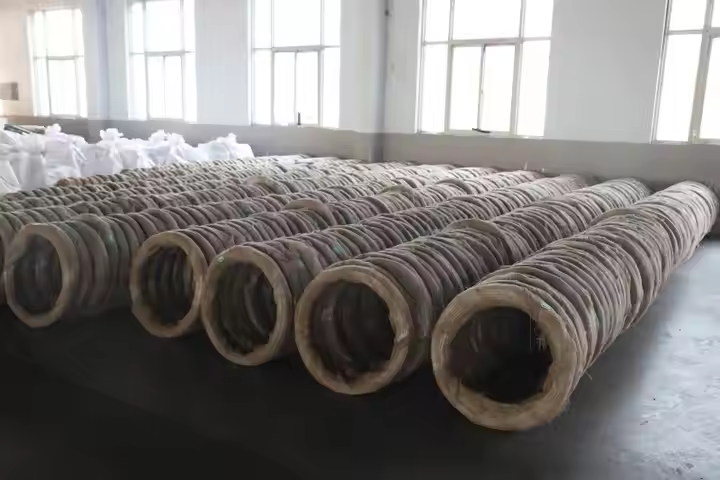

Standard Coil Sizes:

Jumbo Coils: Max 800 kg (I.D.: 450-800 mm, O.D.: 400-770 mm).

Small Coils: 1-100 kg (I.D.: 8"-16" depending on wire diameter).

Packaging Options:

Waterproof wrapping (plastic or woven cloth) to prevent moisture damage.

Wooden pallets or crates for secure storage and shipping.

Customization: Tailored coil weights and packaging methods available.

Applications

Weaving Mesh:

Manufacturing woven wire mesh for filters, screens, and fencing.

Construction:

Binding rebars, securing structures, and lightweight fastening.

Agriculture:

Vineyard trellising, crop support, and animal fencing.

Industrial Use:

Cable manufacturing, machinery parts, and DIY projects.

Why Choose Jinhai Zhongda?

Precision Manufacturing:

Our electro galvanizing process ensures a uniform zinc coating and consistent tensile strength across all batches.

Wide Product Range:

Available in multiple diameters, tensile strengths, and materials to meet specific needs.

Quality Assurance:

Each coil undergoes rigorous testing for zinc coating adhesion, tensile strength, and elongation rate.

Customization Support:

We offer tailored zinc coatings, coil sizes, and packaging options to align with your project requirements.

Competitive Pricing:

Cost-effective solutions without compromising on quality, backed by efficient production and supply chain management.

Global Logistics:

Timely delivery and reliable support for customers worldwide.

For inquiries or custom orders, contact us today!
